Turbo Saw Blade

Product Overview

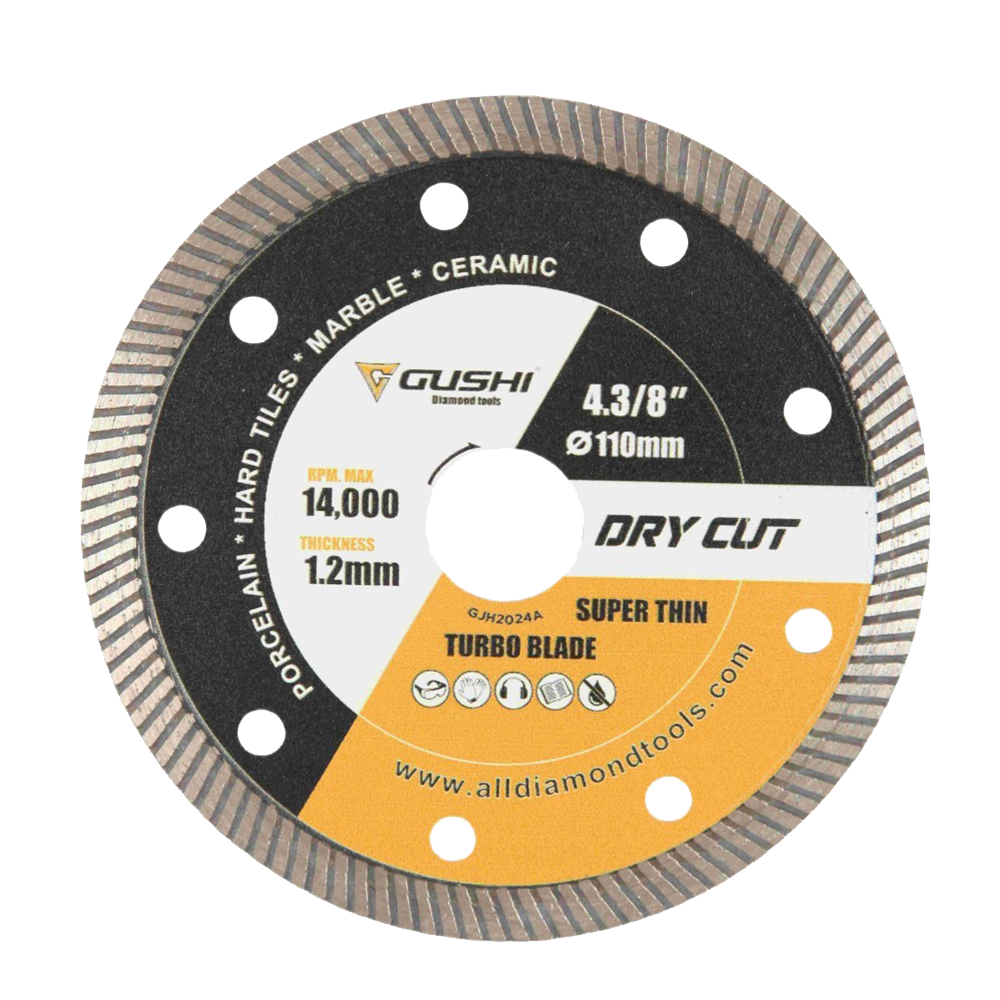

The GUSHI HHPST Super Thin Turbo Diamond Saw Blade is a hot-pressed sintered blade with an ultra-thin continuous-rim turbo design that delivers fast, smooth, chip-free cutting of tile, ceramic, marble, granite and other hard materials. The narrow 1.0–1.6mm kerf cuts clean with minimal material waste and low resistance, while the high-quality industrial diamond grain keeps the edge sharp through the full 5–10mm segment height. Available in 7 diameters from 4″ (100mm) to 9″ (230mm) with 16/20/22.23/25.4mm arbors for both dry and wet cutting, it is manufactured by Huzhou Gu’s Imp. & Exp. Co., Ltd. (founded 2004, ISO 9001:2015, CE and EN13236 certified) with an OEM MOQ of 500 pieces.

The defining feature is the super-thin turbo rim. Where a standard continuous-rim blade has a thicker, plain edge, the HHPST rim is narrowed to 1.0–1.6mm and given a turbo profile that clears slurry and debris through the cut. The result is a blade that glides through glazed tile and brittle porcelain with far less chipping than a thicker blade — on most cuts, the edge is already clean enough that no edge-grinding pass is needed.

The blade is built on the same 65Mn spring steel core platform as the rest of the GUSHI range — laser stress-relieved, computer-balanced and EN13236 burst-speed tested. Customers can choose a silent (noise-damped) or non-silent core, which matters on residential interior jobs and in noise-sensitive workshops where the high-pitched whine of a spinning blade is unwelcome.

For distributors, the HHPST is a staple tile-and-stone SKU with a clear value story: less chipping means fewer rejected cuts, less material waste and shorter finishing time. GUSHI supports it with OEM branding, custom packaging and segment bonds tuned to local tile and stone markets.

Full Specifications

How the Super Thin Turbo Blade Works

1. Ultra-Thin Turbo Rim Cuts Clean Through Brittle Materials

The HHPST rim is narrowed to just 1.0–1.6mm and given a continuous turbo profile. Because the kerf is so thin, the blade removes less material per pass and generates less side pressure on the workpiece — which is exactly why glazed tile and porcelain chip less. The turbo profile adds cutting edge and clears slurry, keeping the cut cool and smooth rather than bogging down like a blunt thick blade.

2. Hot-Pressed Sintered Segments Hold a Sharp Edge

Segments are compressed and sintered at high temperature in a cobalt-nickel matrix, locking in high-quality industrial diamond grit. The bond is tuned so the blade stays sharp across the full 5–10mm segment height without glazing, delivering long, stable cutting performance on hard tile and stone.

3. Balanced Steel Core for Precision and (Optional) Quiet

The 65Mn core is laser stress-relieved and computer-balanced to a 0.1mm runout tolerance, so the blade runs true and produces straight, precise cuts. Buyers can specify a silent (noise-damped) core that suppresses the whine of high-speed rotation — a practical advantage on indoor and residential jobs.

Key Features Explained

Super-Thin Kerf — Less Chipping, Less Waste, Less Load

The 1.0–1.6mm kerf is the core benefit. A thinner cut means less material torn from the workpiece (fewer chips), less stone or tile discarded per cut, and lower resistance on the grinder — which reduces motor load and extends tool life. On large-format tile jobs, the narrower cut can save a measurable amount of material and finishing time across a whole project.

Chip-Free Edge, Less Finishing

Because the thin turbo rim cuts cleanly, most tiles come off the blade with an edge that needs little or no grinding. Tile setters skip the edge-dressing step on straight cuts, and fabricators get a precise cut face ready for miters and seams. This is why the HHPST is a favorite for visible tile work.

Selectable 5–10mm Segment Height

Operators choose segment height by job: thinner 5–7mm segments for fine tile work, thicker 8–10mm for longer life on granite and quartz. More diamond height means more cuts before the blade is spent — a direct lever on cost per cut.

Dry or Wet — Works Where You Need It

The blade is rated for dry cutting (ideal on interior sites without water) and wet cutting (recommended for granite, quartz and Dekton to keep the thin rim cool). A light water spray is enough to extend segment life on hard stone without a full wet table.

Silent Core Option

The optional silent core damps vibration and the characteristic blade whine, improving operator comfort and meeting noise expectations on residential and retail jobs. Non-silent cores remain the standard, lower-cost choice for general site and shop use.

Size Selection Guide (HHPST Series)

Choose the diameter by machine and material. Max RPM figures are reference values (Roycel/GUSHI published data for 115/125/230mm plus ~80 m/s peripheral-speed calculation for the others); always verify against the RPM marked on your specific blade and the machine’s no-load speed.

Applications & Suitable Materials

Typical Applications

Suitable Materials
