Specifications
| Item?NO. |
Diameter
??mm??
|
Length
??mm??
|
Tooth
??pcs??
|
| 30GSHS | 30 | 2 | 4 |
| 35GSHS | 35 | 2 | 4 |
| 40GSHS | 40 | 2 | 5 |
| 45GSHS | 45 | 2 | 5 |
| 50GSHS | 50 | 2 | 5-6 |
| 55GSHS | 55 | 2 | 6 |
| 60GSHS | 60 | 2 | 6-7 |
| 65GSHS | 65 | 2 | 6-8 |
| 68GSHS | 68 | 2 | 6-8 |
| 70GSHS | 70 | 2 | 7-9 |
| 75GSHS | 75 | 2 | 7-9 |
| 80GSHS | 80 | 2 | 8-10 |
| 82GSHS | 82 | 2 | 8-10 |
| 85GSHS | 85 | 2 | 8-10 |
| 90GSHS | 90 | 2 | 8-11 |
| 95GSHS | 95 | 2 | 10-11 |
| 100GSHS | 100 | 2 | 10-12 |
| 105GSHS | 105 | 2 | 10-12 |
| 110GSHS | 110 | 2 | 12 |
| 115GSHS | 115 | 2 | 13 |
| 120GSHS | 120 | 2 | 13 |
| 125GSHS | 125 | 2 | 13 |
| 130GSHS | 130 | 2 | 13 |
| 135GSHS | 135 | 2 | 13 |
Description

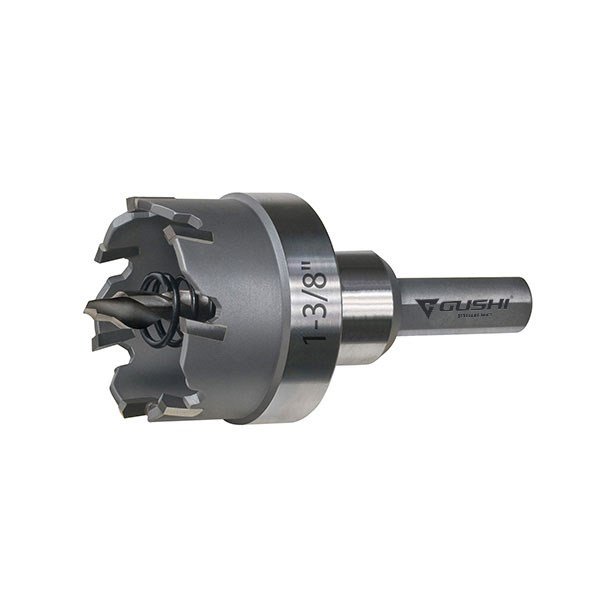

Carbide tip hole cutteroffer the most efficient and clean cutter replacement for traditional
knockouts, by making smooth holes in a fraction of the time at a fraction of the cost.
Application for cutting stainless steel,steel plate, l-beam and cast steel.
| Item?NO. |
Diameter
??mm??
|
Length
??mm??
|
Tooth
??pcs??
|
| 30GSHS | 30 | 2 | 4 |
| 35GSHS | 35 | 2 | 4 |
| 40GSHS | 40 | 2 | 5 |
| 45GSHS | 45 | 2 | 5 |
| 50GSHS | 50 | 2 | 5-6 |
| 55GSHS | 55 | 2 | 6 |
| 60GSHS | 60 | 2 | 6-7 |
| 65GSHS | 65 | 2 | 6-8 |
| 68GSHS | 68 | 2 | 6-8 |
| 70GSHS | 70 | 2 | 7-9 |
| 75GSHS | 75 | 2 | 7-9 |
| 80GSHS | 80 | 2 | 8-10 |
| 82GSHS | 82 | 2 | 8-10 |
| 85GSHS | 85 | 2 | 8-10 |
| 90GSHS | 90 | 2 | 8-11 |
| 95GSHS | 95 | 2 | 10-11 |
| 100GSHS | 100 | 2 | 10-12 |
| 105GSHS | 105 | 2 | 10-12 |
| 110GSHS | 110 | 2 | 12 |
| 115GSHS | 115 | 2 | 13 |
| 120GSHS | 120 | 2 | 13 |
| 125GSHS | 125 | 2 | 13 |
| 130GSHS | 130 | 2 | 13 |
| 135GSHS | 135 | 2 | 13 |
